R410A Replacement Coils: Questions About Compatibility and Warranty Coverage

Published September 8, 2026

An R410A replacement coil is not automatically compatible simply because its label says it can be used with R410A. The technician must verify that the coil is approved for the existing outdoor condenser or heat pump, indoor air handler or furnace, required capacity, metering device, airflow, installation orientation, and operating pressure.

Warranty coverage is a separate question. A manufacturer’s limited warranty may provide the replacement coil or another covered part, but it may exclude diagnosis, labor, refrigerant, shipping, system modifications, and damage caused by improper installation.

Before authorizing a coil replacement, obtain the complete indoor and outdoor model numbers, an AHRI reference or manufacturer-approved match when available, and written confirmation of what the warranty will actually pay for.

Quick Compatibility and Warranty Checklist

The Air-Conditioning, Heating, and Refrigeration Institute explains that split-system performance depends on a properly matched indoor and outdoor combination. An AHRI reference number or certificate can help verify that the specific combination has been tested and certified.

Why “R410A Compatible” Is Not Enough

R410A identifies the refrigerant used in the system. It does not identify every other characteristic needed to select a replacement evaporator coil.

Two coils advertised for R410A may differ in:

• Cooling capacity
• Heat-pump or cooling-only application
• Fin and tube configuration
• Airflow requirements
• Cabinet width and height
• Vertical, horizontal, or multiposition installation
• Drain-pan arrangement
• Liquid and suction connection sizes
• Factory-installed metering device
• Approved indoor and outdoor equipment combinations

A coil that physically fits inside the cabinet can still be an unapproved or poorly performing match. Likewise, a larger coil is not automatically better. Oversizing or selecting an undocumented combination can affect sensible cooling, moisture removal, refrigerant control, system efficiency, and compressor reliability.

What Makes an R410A Replacement Coil Compatible?

1. The Complete Model Combination

The technician should record the full model and serial numbers from the outdoor condenser or heat pump, indoor coil, air handler or furnace, and any relevant accessory.

A partial model number is risky because one or two characters may identify a different capacity, cabinet size, factory-installed TXV, revision, or approved application.

The preferred evidence is:

1. An AHRI-certified combination;
2. A manufacturer matchup table or technical bulletin; or
3. Written manufacturer approval for that exact combination.

If the contractor cannot produce one of these, ask how compatibility was determined.

2. Refrigerant and Pressure Approval

R410A systems operate under different conditions from many older R22 systems. A replacement coil must be explicitly approved for the refrigerant, pressure, application, and equipment combination.

Do not assume an old R22 coil can remain in service with an R410A outdoor unit. Do not assume that a newer coil advertised for R32 or R454B is interchangeable with an R410A coil. The manufacturer’s documentation must support the proposed application.

3. Capacity and Certified Efficiency

The coil influences both system capacity and efficiency. A nominal “three-ton” coil and a three-ton outdoor unit are not necessarily a certified pair.

The published SEER2, EER2, and heating-performance ratings apply to tested equipment combinations. ENERGY STAR’s central air-conditioner and heat-pump specification likewise treats a split system as a combination of indoor and outdoor components—not as independently rated pieces.

Replacing a coil with an undocumented alternative therefore does not automatically preserve the original efficiency rating.

4. Metering Device

The replacement coil may use a thermostatic expansion valve, commonly called a TXV, or a fixed-orifice piston. Its refrigerant rating, size, installation direction, and application must match the manufacturer’s instructions.

A metering-device error can produce symptoms that resemble an incorrect refrigerant charge, including:

• High or low superheat
• Unstable pressures
• Coil icing
• Poor cooling
• Compressor overheating
• Reduced efficiency

Charging the system cannot correct an incompatible or incorrectly installed metering device.

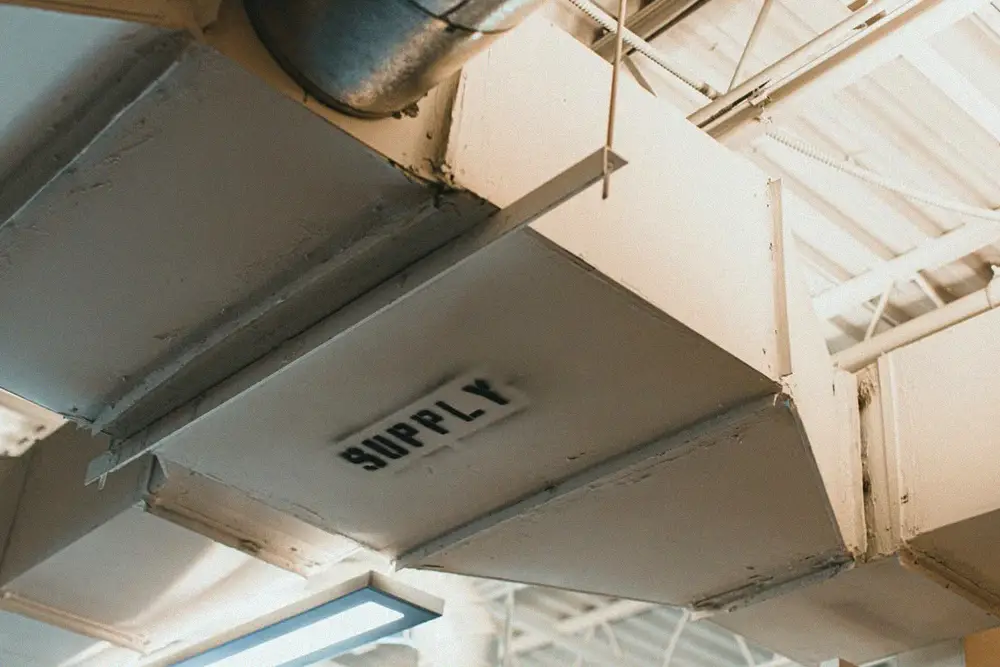

5. Airflow, Cabinet Fit, and Drainage

A correct coil must work with the existing blower and cabinet. The technician should verify airflow, available static pressure, furnace or air-handler width, duct transitions, service clearance, installation orientation, and condensate drainage.

A coil that restricts airflow may reduce cooling and contribute to icing. Before condemning an evaporator coil, the contractor should also distinguish a refrigerant leak from airflow-related problems such as a dirty filter, blocked return, weak blower, or contaminated heat-transfer surface. See Can Dirty AC Coils Cause Low Cooling Performance? for a closer look at coil cleanliness and cooling performance.

Will a Replacement Coil Preserve the Original SEER2 Rating?

Not automatically.

The efficiency rating belongs to a documented indoor-and-outdoor equipment combination. Installing a different coil may change the certified rating—or leave the completed system without a published rating for that combination.

Ask the contractor for:

• The AHRI certificate or certified reference number
• The replacement coil’s full model number
• The outdoor unit’s full model number
• The approved metering-device information
• The rated cooling capacity
• The published SEER2 and EER2 for the proposed match

This is especially important when equipment rebates, energy programs, code documentation, or project specifications depend on a particular efficiency rating.

What Does an Evaporator Coil Warranty Usually Cover?

Warranty language differs among manufacturers, models, installation dates, registration status, and jurisdictions. However, limited equipment warranties commonly distinguish the replacement part from the total cost of completing the repair.

For example, Carrier’s residential warranty FAQ identifies coils as functional parts that may fall under limited parts coverage, while explaining that labor is not included under its limited parts warranty and that refrigerant is excluded.

Current Trane base limited-warranty terms similarly describe furnishing a replacement part for a covered manufacturing defect. Those terms also require applicable indoor coils to be part of an AHRI-rated, manufacturer-specified, or otherwise approved system combination.

These are manufacturer examples, not universal promises. The warranty issued for the customer’s exact equipment controls the claim.

Original Equipment Warranty vs a New Replacement-Coil Warranty

There are two potentially different situations.

Coil Replaced Under the Original System Warranty

The original equipment manufacturer may supply an approved replacement part through its dealer or distributor. The repair normally remains subject to the original warranty’s expiration date and conditions unless the written terms state otherwise.

A replacement part does not necessarily restart the entire system warranty.

Out-of-Warranty Aftermarket Coil

An independently manufactured replacement coil may have its own warranty. That warranty may begin from the purchase or installation date, but registration requirements, proof of purchase, owner-occupancy rules, transferability, and exclusions can vary.

For example, ADP’s current warranty information distinguishes standard coverage from extended coverage that may require timely registration, while recognizing that registration conditions can differ in jurisdictions where such requirements are restricted.

Keep copies of:

• The original equipment invoice
• Product-registration confirmation
• Replacement-coil invoice
• Coil model and serial numbers
• Contractor diagnosis
• Warranty authorization
• Final startup and charging report

Questions to Ask Before Approving the Repair

Before a coil is ordered, ask the contractor:

1. What caused the original coil to fail?
2. Was a leak confirmed, and where was it located?
3. What is the complete model number of the proposed replacement?
4. Is it an OEM coil or an aftermarket coil?
5. What document confirms compatibility with the outdoor unit?
6. Is there an AHRI-certified combination?
7. Will the original SEER2 rating still apply?
8. Does the replacement include the correct R410A TXV or piston?
9. Are cabinet, drain, duct, or line-set modifications required?
10. Who provides the parts warranty?
11. Who provides the labor warranty?
12. Are refrigerant, recovery, evacuation, and charging included?
13. Must the replacement coil be registered?
14. Who files the warranty claim if the coil fails again?
15. Will the contractor provide final airflow and charging measurements?

A detailed written estimate should separate the coil, installation labor, refrigerant, recovery, accessories, modifications, permits, and warranty-related credits.

When Refrigerant Must Be Added After Coil Replacement

Opening an R410A system for coil replacement requires proper recovery, installation, evacuation, leak testing, and charging procedures. In the United States, the EPA Section 608 technician-certification program applies to technicians performing work that could release regulated refrigerants from stationary air-conditioning equipment.

The contractor should determine the required charge from the equipment documentation and actual installation—not from a generic estimate.

Once the exact system match has been approved, the leak has been repaired, and the required quantity has been calculated, qualified buyers can review R410A refrigerant in a 25 lb factory-sealed cylinder from Freon Shop. Contractors managing several confirmed applications can also browse the broader HVAC refrigerant collection.

Do not purchase refrigerant as a substitute for diagnosing the leak or verifying the replacement coil.

Should You Replace the Coil or the Entire HVAC System?

Coil replacement may be reasonable when:

• The outdoor unit is in good condition.
• The compressor passes electrical and mechanical checks.
• An approved replacement coil is available.
• The system has a useful remaining service life.
• The repair preserves acceptable capacity and efficiency.
• The total out-of-pocket cost is favorable.
• Parts and labor coverage reduce financial risk.

Full-system replacement deserves consideration when:

• No documented coil match is available.
• The outdoor unit has major additional problems.
• The compressor is damaged or badly worn.
• The proposed combination has uncertain performance.
• Extensive cabinet, duct, line-set, or electrical changes are required.
• Repair costs are high relative to the system’s age and condition.
• The owner wants a current matched system with new equipment coverage.

The decision should compare total installed costs, warranty coverage, expected remaining life, efficiency, comfort, and the risk of another major repair—not just the price of the coil.

Frequently Asked Questions

Can any R410A evaporator coil work with an R410A condenser?

No. Refrigerant designation alone does not establish compatibility. Verify the exact indoor and outdoor model combination, capacity, metering device, airflow requirements, application, and manufacturer or AHRI approval.

Can an R22 coil be reused with an R410A condenser?

Do not assume it can. Use an R22-era coil only if the equipment manufacturer provides specific written approval for that exact application and the technician confirms every installation requirement.

Can an R454B or R32 coil be installed on an R410A system?

Only when the manufacturer explicitly approves the exact coil and system combination. A coil designed or labeled for a newer refrigerant is not automatically interchangeable with an R410A coil.

Does a new evaporator coil restore the original SEER2 rating?

Only if the replacement produces a documented rated combination. Ask for the AHRI reference number or manufacturer performance data for the proposed indoor and outdoor models.

Is replacement refrigerant covered by the coil warranty?

Often it is not covered by a limited parts warranty. Refrigerant coverage may come from a separate labor agreement or extended plan, if available. Confirm the answer in writing.

How long is an R410A replacement-coil warranty?

There is no universal term. Coverage depends on the manufacturer, coil model, installation date, registration, original equipment warranty, ownership status, and jurisdiction.

Who files the warranty claim?

Usually the servicing dealer or contractor diagnoses the failure and processes the claim through the appropriate distributor or manufacturer. Confirm claim responsibilities and possible processing charges before work begins.

Does the replacement coil need to be registered?

Possibly. An OEM warranty replacement may remain under the original system terms, while a separately purchased aftermarket coil may have its own registration process. Follow the exact written warranty.

Final Takeaway

An R410A replacement coil should be chosen as part of a complete HVAC system, not as an isolated component. The strongest compatibility evidence is an AHRI-certified match, an OEM matchup table, or written manufacturer approval tied to the exact indoor and outdoor model numbers.

Warranty coverage also requires careful reading. A coil part may be covered while labor, diagnosis, refrigerant, shipping, and system modifications remain the owner’s responsibility.

Before installation, request the approved system match, itemized repair estimate, warranty terms, coil registration requirements, and final commissioning records. That documentation helps protect system performance—and prevents a “covered coil” from becoming an unexpectedly expensive repair.
